The Color Uniformity Problem in LED Wall Installations
Imagine a massive custom LED video wall displaying a completely white image. From a distance, it looks perfect—bright, crisp, and free of dead pixels or visible interruptions. Step closer, though, and subtle differences begin to appear: one area looks warmer, another slightly dimmer, and smooth gradients break into faint bands. That is where color uniformity problems become visible.
These flaws can appear even when the system seems to be working correctly. A pixel does not need to fail for color balance to drift; installation issues, mismatched settings, or component differences can create noticeable variation. If those differences are ignored, they can become distracting during presentations, broadcasts, and live productions.
Complex photos and fast-moving video often hide inconsistencies that simple content exposes immediately. White, gray, or solid-color backgrounds leave little room for error, especially across large LED walls. The larger the surface, the easier it is to notice a pattern that repeats from one section to another.
Variations can come from brightness, temperature, calibration, signal processing, or differences among individual LED devices and modules. Understanding the source makes it easier to evaluate installation quality and choose equipment that maintains consistent color across both compact LED screens and larger systems. Uniformity starts with knowing what is causing the mismatch.
When One LED Screen Starts Looking Like Many
The Eye Notices More Than a Spec Sheet Does
Specifications can confirm resolution, brightness, and pixel pitch, but they cannot fully describe how an image will look once every component works together. Visual consistency depends on the complete system, not one number on a datasheet.
A white background is a simple example. If some modules display a warmer white while others appear cooler, the image can take on a patchwork effect. The same problem becomes obvious when a corporate color fills most of a presentation or when minimalist content leaves few details to distract the eye. The cleaner the image, the more visible the differences become.
Scale makes the issue harder to ignore. A small shift may be nearly invisible on a compact screen but obvious when repeated across large LED video walls. Once the eye detects a pattern, the illusion of one continuous image starts to break down.
Certain Content Exposes the Problem Faster
Not all content tests uniformity in the same way. Motion, texture, and frequent lighting changes can mask small variations, while simple visual fields expose them quickly. White backgrounds and brand colors are especially unforgiving.
Skin tones can reveal differences between cabinets, and smooth gradients can show abrupt changes that should not be there. Large gray areas and solid red, green, or blue graphics can do the same. On LED display panels, the fewer visual distractions there are, the easier it is to see uneven reproduction.
In practice, the content itself becomes a useful quality check. Simple images often reveal problems faster than complex test footage.
Seamless Hardware Does Not Guarantee a Seamless Image
Cabinets can fit together perfectly and still produce an image that looks uneven. Physical alignment and visual uniformity are related, but they are not the same thing.
Physical seamlessness depends on cabinet precision, module placement, and the absence of visible gaps. Visual seamlessness depends on consistent brightness, color, and processing across LED panels. A mechanically clean installation can still show tonal differences, while good calibration cannot correct a shadow caused by poor alignment. Both sides of the system must be right.
For a convincing result, hardware and playback need to work as one. Module quality, component consistency, calibration, and image processing all influence what the viewer sees across LED walls. The goal is to make the surface read as one image rather than a collection of parts.
Color Differences in LED Panels Have More Than One Origin
LEDs Do Not Always Age at the Same Speed
LEDs do not age as one perfectly uniform group. Operating hours, temperature, brightness, and environmental conditions can cause some areas to change faster than others. Even a well-matched installation can drift over time.
A system that left the factory with precise calibration may show variation after years of heavy use. This is especially relevant for outdoor LED displays, where heat, humidity, and temperature swings add more stress. Long-term consistency depends on both component quality and ongoing maintenance.
For that reason, uniformity should not be judged only on installation day. LED technology must also support stable performance, practical recalibration, and service procedures that can correct small differences before they become obvious. A strong system is designed to stay consistent, not just start consistent.
Mixing Components Can Create Invisible Boundaries
Repairs and expansions can introduce mismatched components even when the replacement parts look identical. Small manufacturing differences can become visible once the screen is running.
Modules from different production batches may vary slightly in color or brightness. Those differences are easier to notice when new modules are installed next to older ones. The same risk applies when adding cabinets or expanding LED video walls with newer hardware. Compatibility matters as much as physical fit.
A repair does not have to compromise the image. Properly matched replacement parts, calibration data, and technical procedures can help new components blend into existing LED screens. The objective is to restore continuity, not simply restore function.
Configuration Can Be Just as Important as Hardware
Not every color difference points to a defective panel. Two identical components can produce different results when their settings do not match. Configuration errors can create visible problems even when the hardware is sound.
Receiving cards, brightness values, calibration files, processing parameters, and control settings all affect how modules reproduce a signal. This becomes especially important after repairs, when a replacement may be connected correctly but still use the wrong parameters. Matching the configuration is part of matching the image.
Across large LED display panels, color control requires a system-level approach. Consistent hardware, correct calibration data, and coordinated control settings help preserve visual continuity. The viewer should see one surface, not the setup behind it.
Why Calibration Matters More as LED Displays Get Bigger
Small Differences Multiply Across a Large Canvas
A small shift in hue or luminance may be difficult to notice in one module, but it becomes more obvious when repeated across many cabinets. Minor deviations can turn into visible zones across a large image.
That is why large LED walls require close control at both the module and cabinet levels. Each section needs to respond consistently with its neighbors, particularly in corporate backdrops, churches, stages, studios, and commercial spaces. More surface area gives small inconsistencies more room to show.
Calibration Is About Relationships, Not Maximum Brightness
Calibration is not about pushing every LED to maximum intensity. A very bright system can still look uneven. The objective is balance, not raw output.
The process may involve adjusting RGB output, luminance, color coordinates, and grayscale response so each area reproduces the same signal consistently. On LED screens, a simple gray field can reveal a luminance shift immediately, even when every section is displaying the same file. Calibration corrects those relationships across the full canvas.
The Best Calibration Is the One You Stop Noticing
The best calibration is almost invisible. When colors stay consistent, gradients remain smooth, and brightness feels even, viewers stop thinking about the hardware. Their attention stays on the content.
That is the real purpose of calibration across the display surface: not to make the specifications sound impressive, but to create a coherent visual surface. A well-tuned system lets the audience focus on the message, presentation, or production instead of the technology behind it.
The Room Can Change the Color You Think You See
Ambient Light Can Make a Good Screen Look Wrong
A lobby with large windows behaves differently at noon than it does at night, just as a conference room with controlled lighting behaves differently from a bright retail space. The environment changes how color and brightness are perceived.
Natural light, architectural fixtures, and reflections can make sections of LED video walls appear brighter, dimmer, warmer, or cooler. Even a properly calibrated display may look inconsistent if one area receives direct sunlight while another remains shaded. Real operating conditions matter more than a generic test environment.
Brightness, placement, and nearby light sources should be considered during planning. For installations used in changing environments, visual performance should be evaluated where the system will actually operate.
Cameras Are Less Forgiving Than Human Eyes
A viewer may overlook a slight difference between cabinets, but a camera can expose it immediately. On-camera applications demand tighter visual control.
In broadcasts, events, studios, and virtual production, exposure, white balance, refresh rate, and shutter settings can make small inconsistencies more noticeable. LED display panels for virtual productions that look uniform to the eye may behave differently once captured on video. The camera becomes another part of the evaluation process.
For interview backdrops, virtual sets, and branded productions, testing should include the actual cameras and settings that will be used. Human-eye approval alone is not enough for camera-facing installations.
Brand Colors Leave Little Room for Error
For a brand, color is part of its identity. A specific red, blue, or green may appear across years of advertising, signage, and digital content. When that color fills a large surface, small differences become easy to spot.
This is especially important in trade show booths, reception areas, retail spaces, showrooms, and product launches. LED screens used for branded content need to reproduce color consistently across the full image and under the lighting conditions of the space. Uniformity supports a polished, credible presentation.
In these environments, consistency is more than a technical detail. It affects how clients, partners, and visitors experience the brand.
Uniformity Should Be Planned Before It Becomes a Repair
Start With Consistency at the Buying Stage
A technical datasheet is useful, but one question deserves equal attention: how uniform will the full system look once it is assembled? The answer depends on how well the components perform together.
Manufacturing consistency, cabinet matching, calibration, and module compatibility all influence the final result. Large LED displays should be evaluated as complete systems rather than as individual parts that simply meet separate specifications. System-level consistency is what protects the final image.
This is especially important for projects built around brand colors, uniform backgrounds, large surfaces, or on-camera content. Choosing compatible LED technology from the start can reduce problems that are far harder to correct after installation. Good planning prevents avoidable visual drift.

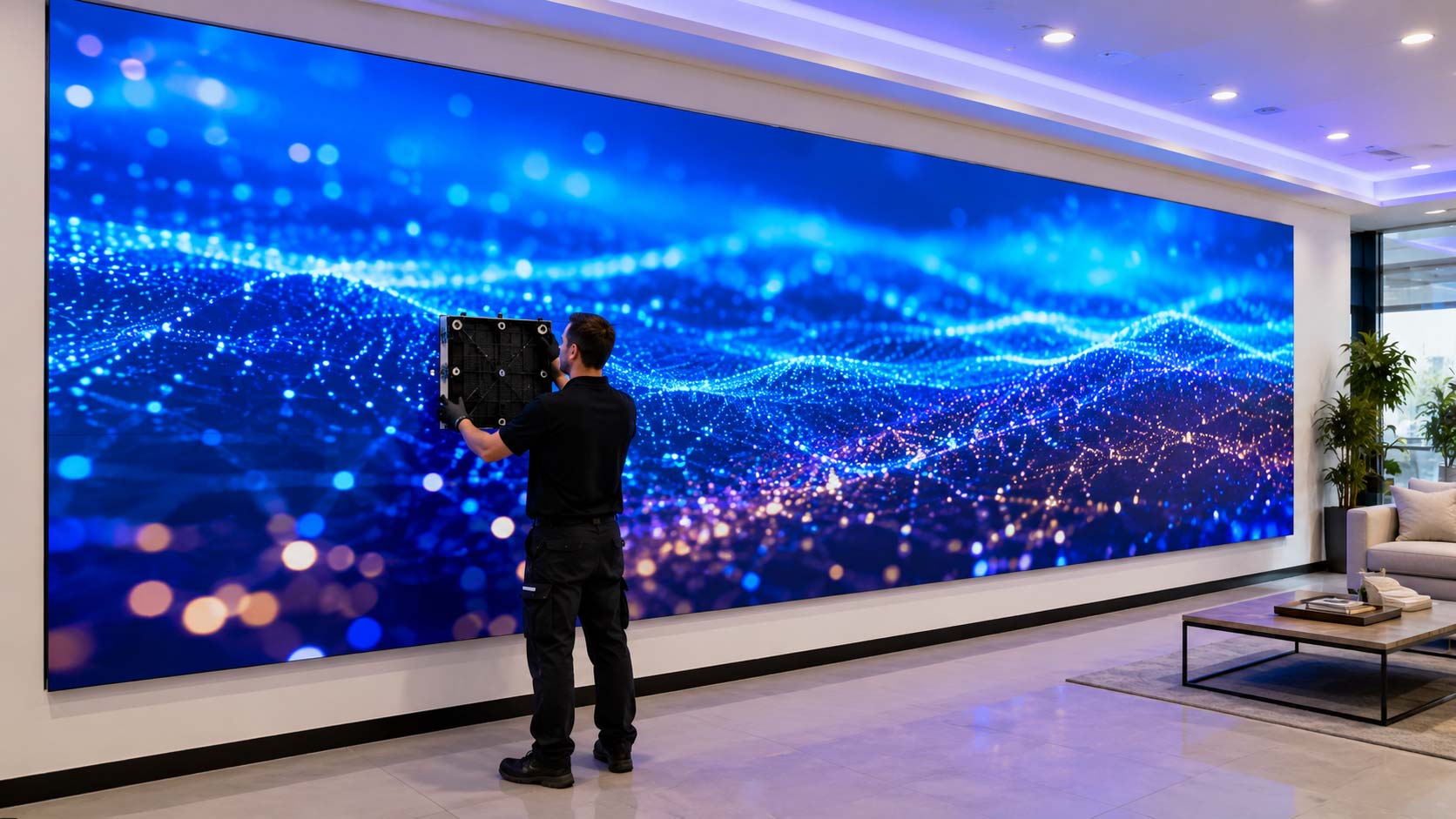

Plan for the Module You May Replace Three Years From Now
Any frequently used system will eventually need service. A module may fail, a power supply may need replacement, or a section may require technical attention. The real question is how easily the original look can be restored afterward.
Magnetic modules and full front service can simplify access, but serviceability is only part of the equation. Compatible spare parts, accurate component records, and a supplier that can identify the correct replacements are just as important for LED walls. Fast access means little if the replacement does not match.
A mismatched module can create a visible boundary at the repair site. Proper spares, calibration procedures, and technical support help LED display panels return to a uniform appearance after service. Maintenance should solve a problem, not create a new one.
Consistency Protects More Than Image Quality
When uniformity declines, the cost may appear as recalibration, service calls, downtime, replacement parts, or hours spent troubleshooting. Small visual differences can create real operational costs.
There is also a presentation cost. Uneven display systems can weaken brand imagery, reduce the perceived quality of a venue, or become distracting in a broadcast. When the display is a focal point, inconsistency affects the entire experience.
Strong uniformity can simplify maintenance, support reliable operation, and help protect long-term ROI across LED panels. Consistency is part of performance, serviceability, and investment protection.
Build the Wall as One Visual System
Large-format projects require coordination before the hardware reaches the site. Cabinets, modules, control systems, image processing, calibration, structure, and maintenance all need to support the same visual goal. The system should be designed as one connected whole.
Mirackle provides LED solutions for projects that require visual consistency, serviceability, and professional performance. Its LED video walls can be configured around panel type, cabinet layout, control systems, installation requirements, and long-term maintenance needs. The focus is not only on initial impact, but on keeping the system dependable over time.
Because for LED video walls, success isn’t judged the day they turn on. It’s judged every day they keep performing without becoming a problem.
